5 Critical Failures in Commercial Metal Picnic Tables And How to Spot Them

Commercial metal picnic tables are commonly used in high-traffic outdoor areas such as parks, schools, campuses, public squares, and restaurants. However, “metal material” does not equate to commercial-grade quality.

Many problems will only become apparent after installation and use, such as frame shaking, weld cracks, table deformation, coating peeling, rusting screws, and water accumulation on the tabletop that cannot be drained.

For facility managers, distributors, and commercial buyers, these problems will increase maintenance costs, pose safety risks, and shorten the product’s lifespan.

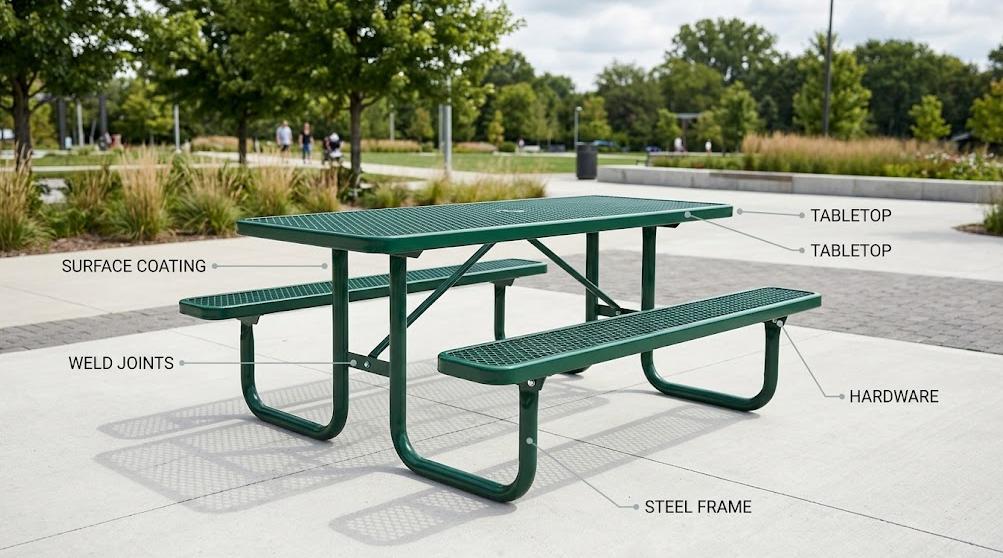

When purchasing commercial metal picnic tables, focus on these five problem-prone areas.

Structural Failures: Weak Steel Frame & Tabletop Sagging

First, check the structure. Commercial picnic tables need to remain stable under repeated weight-bearing, movement, exposure to sun and rain, and high-intensity usage.

Failure1: Frame Wobbling & Weld Joint Cracks

Shaking of the table is not necessarily an installation issue; it could also stem from insufficient frame size, low bending pipe accuracy, weak supporting structure, or poor welding quality.

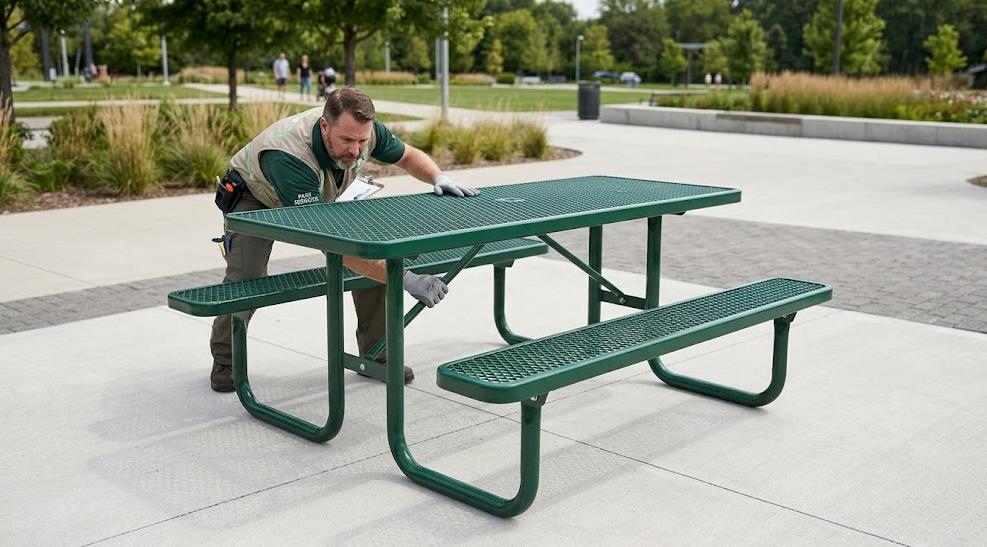

Check the connection between the table legs and the frame first. Place the table on a flat surface and press down on each of the four table corners one by one. If there is obvious shaking or swaying, be vigilant.

Then check the welds, focusing on:

• Are there any cracks around the welds?
• Is the weld complete and uniform?
• Are there any gaps between structural components?
• Is the welding area deformed?
• Is the connection between the table legs and the support pieces loose?

In commercial scenarios, tables with full-sized steel pipes and welded frames are usually more stable than lightweight assembled tables that rely mainly on small bolts. Therefore, industrial-grade commercial picnic tables typically use structural steel pipes and welded frames.

Before ordering, make sure to confirm: the diameter of the steel pipes, wall thickness, cross-support design, welding process, and whether the manufacturer can provide structural specification parameters.

Read more: How to Build a Commercial-Grade Metal Picnic Table

Failure 2: Tabletop Sagging & Mesh Deformation

The tabletop should be able to withstand long-term repeated use without permanent deformation.

For expanded metal tabletops, particular attention should be paid to the material thickness and the bottom support. If the grid is too thin and the support is insufficient, it is prone to bending when bearing concentrated weight.

Check the following issues:

• Center part sagging
• Grid bending or stretching deformation
• Tabletop unevenness
• Connection points loosening

As a reference, the tabletop and seats of some commercial metal picnic tables use expanded metal with a thickness of approximately 2.5 millimeters.

The stability of the tabletop does not only depend on the grid itself, but also on whether the material thickness matches the supporting structure.

Corrosion Failures: Coating Peeling & Hardware Rust

Outdoor metal furniture faces rain, humidity, UV exposure, dirt, and sometimes salt air. Corrosion protection should therefore be checked as a complete system.

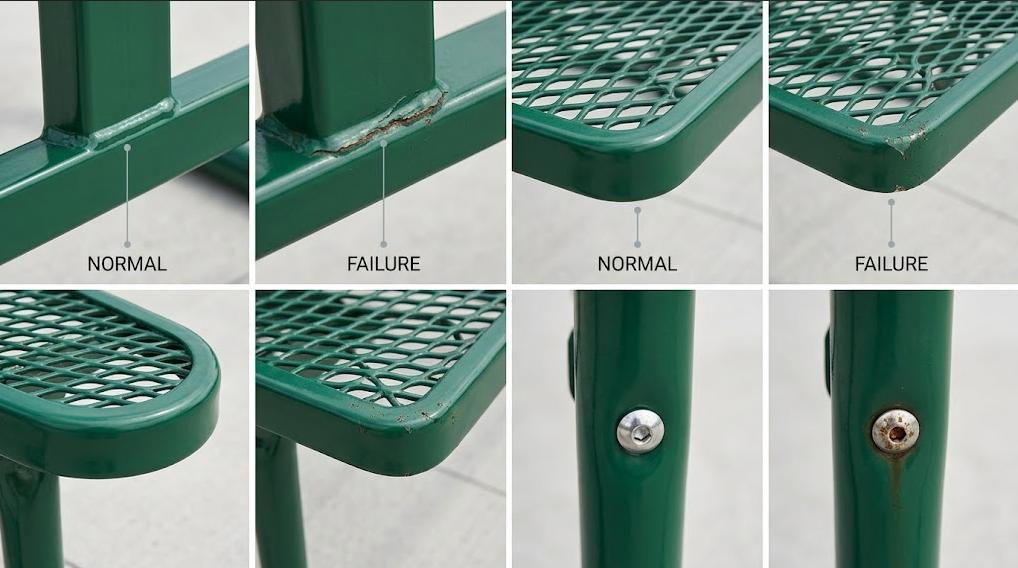

Failure 3: Surface Coating Peeling & Paint Flaking

“Powder coating” does not necessarily mean long-lasting.

Check for the following issues with the coating:

• Bubbling
• Peeling
• Cracking
• Rust formation beneath the coating
• Exposure of steel at edges and welds

Surface pre-treatment and substrate protection are as important as the coating itself.

For commercial outdoor furniture, galvanized steel combined with an appropriate outdoor-grade powder coating or thermoplastic coating can further enhance the anti-corrosion ability.

When purchasing, it is necessary to confirm the complete surface treatment process, rather than just whether the product uses powder coating.

Failure 4: Joint Rusting & Cheap Screw Corrosion

Small hardware components may also become the main weak points.

Screws, bolts, nuts, brackets, and welding areas are prone to accumulating moisture and dirt. Poor-quality hardware may start rusting even before significant corrosion occurs on the main frame.

Check the following items:

• Material of screws and bolts
• Corrosion resistance
• Surface treatment of hardware
• Design of connection structure
• Supply of replacement hardware

For outdoor commercial applications, 304 stainless steel hardware is a worthy specification choice. In coastal and high-humidity environments, the anti-corrosion performance of hardware and connection parts should be particularly checked.

Functional Failures: Water Pooling & High Surface Heat

Structural strength is not the only consideration. Commercial outdoor tables also need to adapt to the daily outdoor environment.

Failure 5: Water accumulation and heat absorption

Solid tabletops tend to accumulate water after heavy rain, causing drying to be slower and leaving the moisture-prone areas in a damp state for a long time.

Expanding nets or perforated metal tabletops can allow water to drain directly, thus accelerating drying.

Heat absorption is also a consideration. Dark metal surfaces exposed to the sun for a long time will increase in temperature, affecting the comfort of use.

When evaluating the tabletop, the following should be considered:

• Tabletop design (expanding nets or perforated plates)
• Drainage performance
• Ultraviolet protection coating
• Surface color
• Installation environment

For outdoor commercial projects, excellent drainage performance and appropriate surface treatment can help enhance the daily usage experience.

Quick Spec Checklist for Commercial Metal Picnic Table Procurement

Before purchasing, check these specifications:

Item	What to Check
Frame	Steel tube size and wall thickness
Welding	Consistent welds without visible cracks
Tabletop	Metal thickness and structural support
Coating	Galvanization and outdoor-grade coating
Hardware	Corrosion-resistant hardware
Drainage	Expanded or perforated surface
UV Protection	Suitable outdoor finish
Installation	Proper anchoring options
Environment	Rain, humidity, UV, and salt exposure

When choosing a suitable commercial metal picnic table, one should not merely focus on the lowest price or the heaviest weight. Before comparing prices, it is essential to carefully inspect the table frame, tabletop, coating, hardware, and drainage design.
