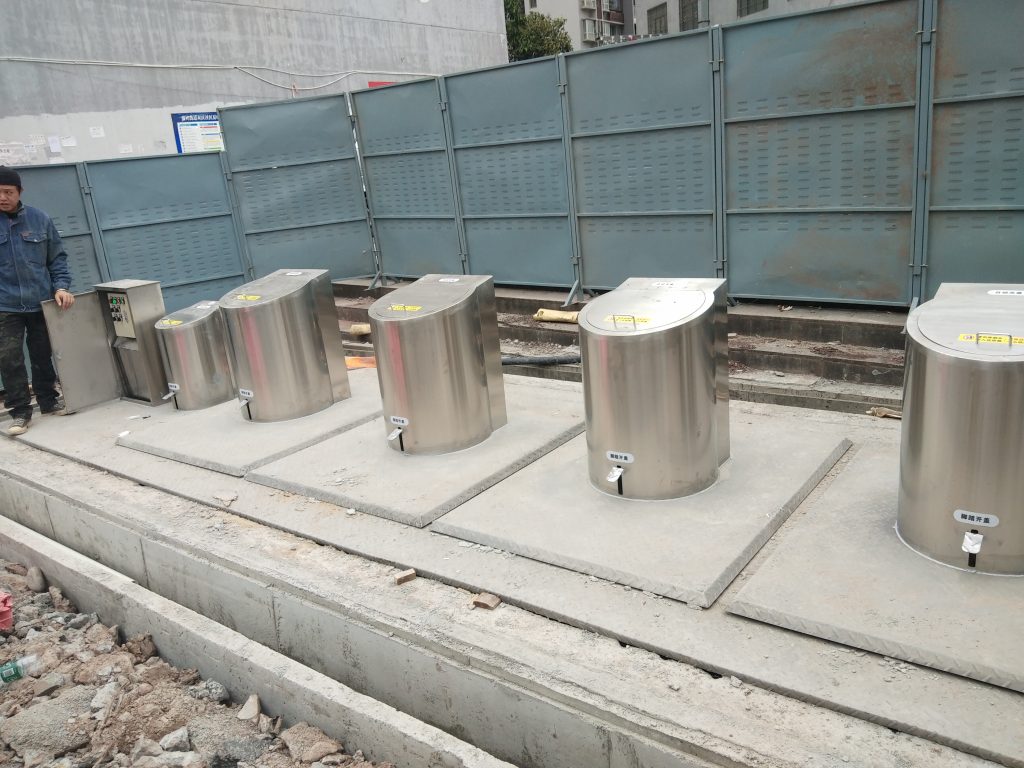

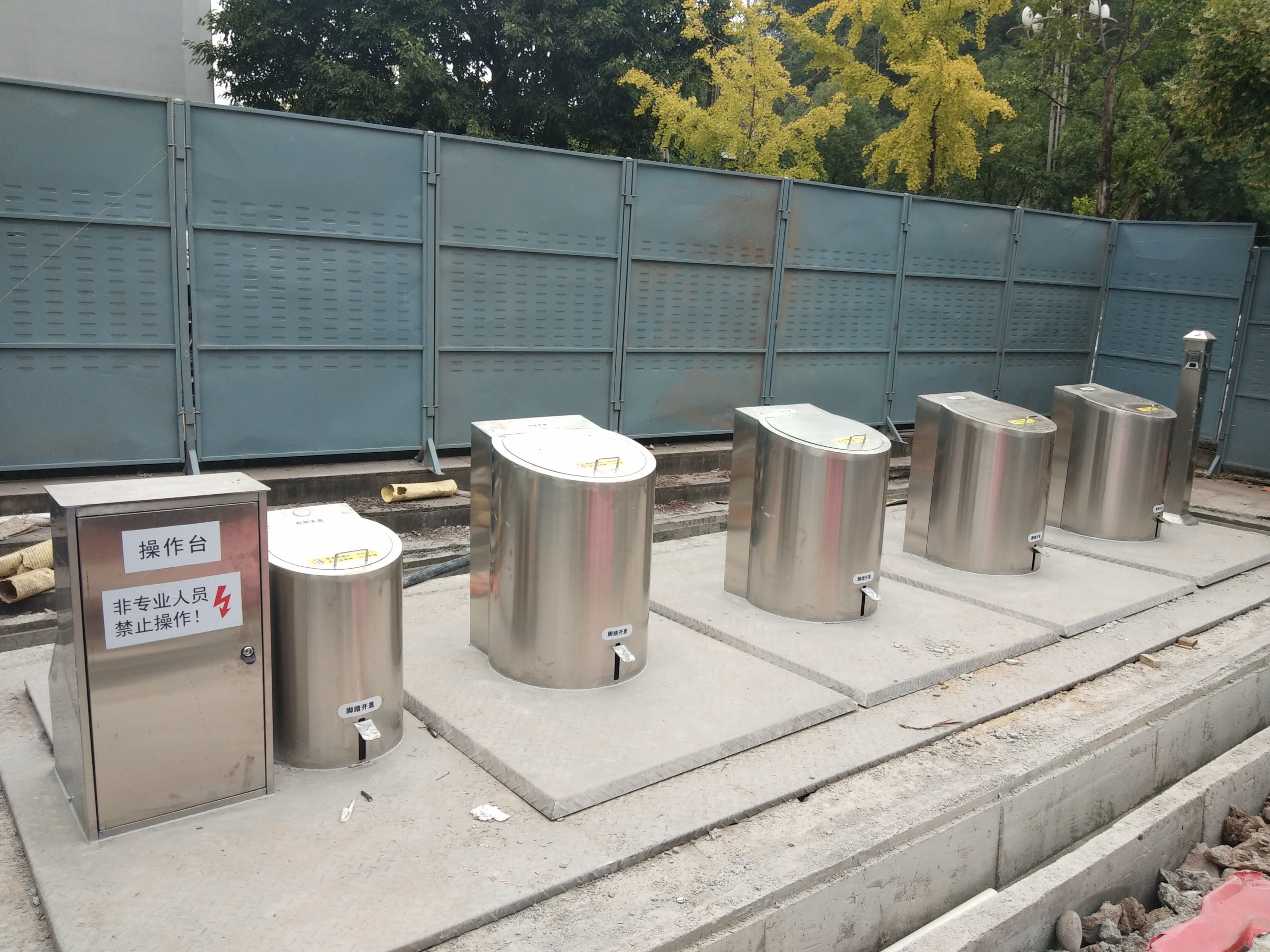

1100L × 5 Underground Trash Containers
Item No.: HDD-6
Capacity: 1100L × 5 (standard wheelie bins)
Inlets: Triple inlets (opening shape/size customizable)

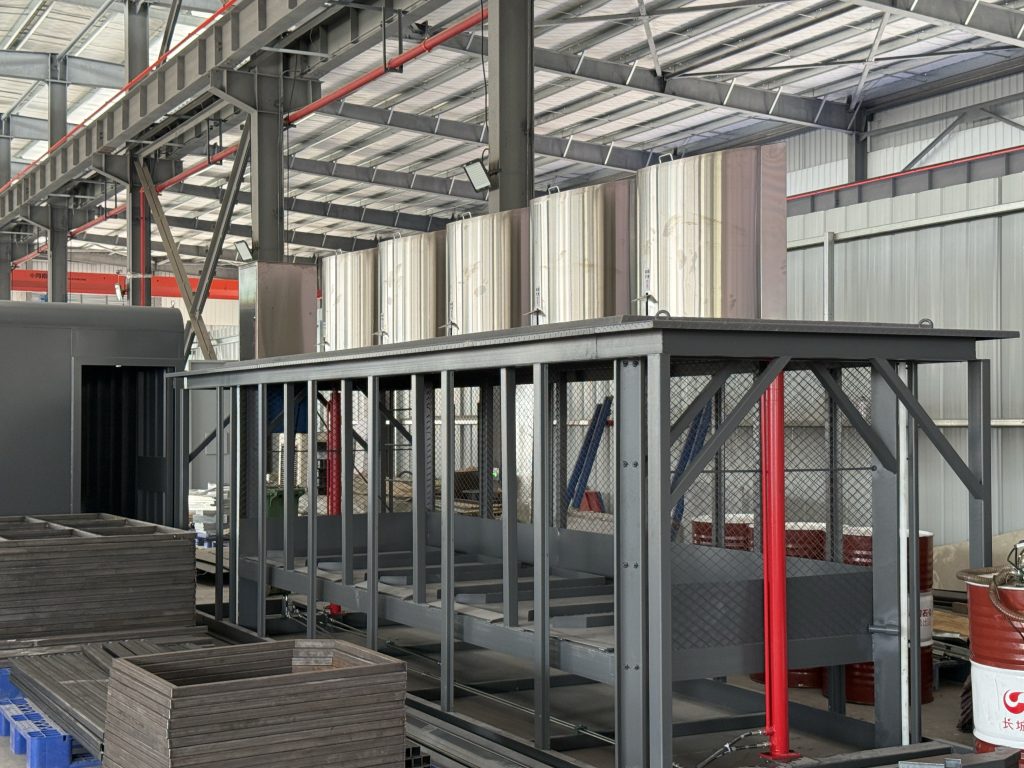

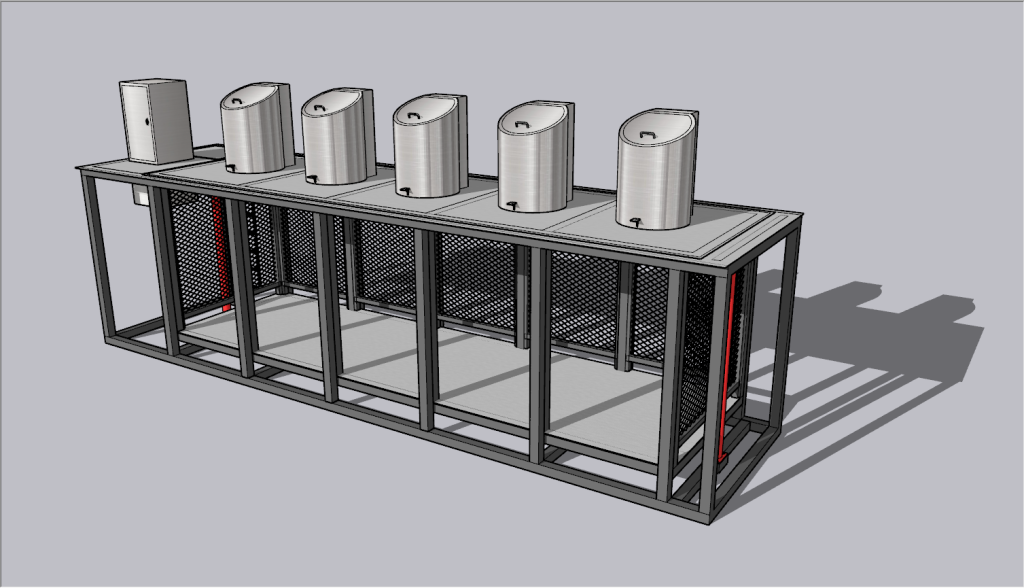

Structure & Materials: Above-grade 2 mm stainless steel platform and inlet assembly; below grade 120 channel steel frame and lift platform with anti-corrosion treatment
Product Description
Built for busy outdoor and semi-outdoor locations, this type of underground trash container places the containers and lifting system below ground and keeps a clean, durable platform with four inlets at street level. The sealed chamber limits odor and pests, reduces secondary pollution, and helps avoid summer rot and winter freezing. With five inlets and five 1100L wheelie bins, peak traffic is distributed, queues shorten, and the site remains tidy. Appearance, signage, and functional modules are configurable and can connect to smart sanitation platforms for overflow sensing, smoke and temperature alerts, automatic fire suppression, deodorization, and remote status.
Specifications
Item No.: HDD-6
Capacity: 1100L × 5 (standard wheelie bins)
Inlets: Triple inlets (opening shape/size customizable)
Drive & Control: Hydraulic lift; supports 24/48V DC or 220V AC per local electrical standards; button/sensor/card control available
Sealing & Drainage: Flanged platform with sealing gaskets; automatic drainage at the pit bottom
Collection Interface: Raise to grade and tow bins out; compatible with common collection vehicles
Features
- Subsurface, sealed architecture: Containers are below ground for a neat streetscape; sealing and drainage help control leakage and odor.
- Five inlet throughput: Five openings spread users during peak periods to reduce queueing and litter.
- Smart sensing ready: Overflow, smoke, and temperature alerts, automatic fire suppression, deodorization, and remote notifications.
- Fleet-friendly operation: No special truck required; raise, tow out, return, and resume service on existing routes.
- Durable outdoor build: 2 mm stainless steel above ground with a 120-channel steel underframe below ground for long service life.
- Safe maintenance: In-pit service access, travel, and mechanical limit protections, and modular parts for quick replacement.
Why Choose Us?
- Policy-aligned delivery: One team covers design, civil coordination, manufacturing, installation, training, and after-sales with full documentation for acceptance.
- Lower total cost of ownership: Sealed collection reduces cleaning frequency and odor complaints; platform data supports route optimization and work order closure.
- Electrical safety and compliance: DC safe voltage or 220 V AC as required; interfaces and wiring prepared to local electrical codes for smooth approval.
- Modular expansion without waste: Configure only the modules you need, such as sensor entry, overflow, fire, deodorization, remote monitoring or GPS to control spending.
- Quality and delivery assurance: Batch production experience, traceable key components, and complete packs of pit drawings, embed guides, installation and maintenance manuals, and spare parts lists.
FAQ
Customize
- Structure & Materials: coated carbon steel or stainless steel (201/304/316)
- Colors & Signage: RAL or custom colors, sorting icons, multilingual labels
- Opening & Control: button/foot/sensor/card access with role management
- Functional Modules: weighing, overflow alerts, smoke/temperature alerts, automatic fire suppression, mist/biological deodorization, inlet locking, remote monitoring/GPS, data interface
- Container Options: compatible with 660L, 240L, 1100L and others per project
