1100L × 3 Inground Garbage Can
Item No.: HDD-5
Capacity: 1100L × 3 (standard wheelie bins)
Inlets: Triple inlets (opening shape/size customizable)
Overall Size: 5522 × 1804 × 2945 mm
Underground Size: 5350 × 1632 × 2085 mm
Ground Size: 5522 × 1804 × 855 mm
Product Description
Engineered for busy outdoor and semi-outdoor sites, HD 1100L × 3 inground garbage can places the containers and lifting set below ground and keeps only a clean, durable top platform with three inlets at street level. The sealed chamber limits odor and pests, reduces secondary pollution, and helps avoid summer rot and winter freezing. With three inlets and three 1100L wheelie bins, peak traffic is distributed, queues shorten, and the area stays tidy. Appearance, signage, and functional modules are configurable and can connect to smart sanitation platforms for overflow sensing, smoke and temperature alerts, automatic fire suppression, deodorization, and remote status.
Specifications
Item No.: HDD-5

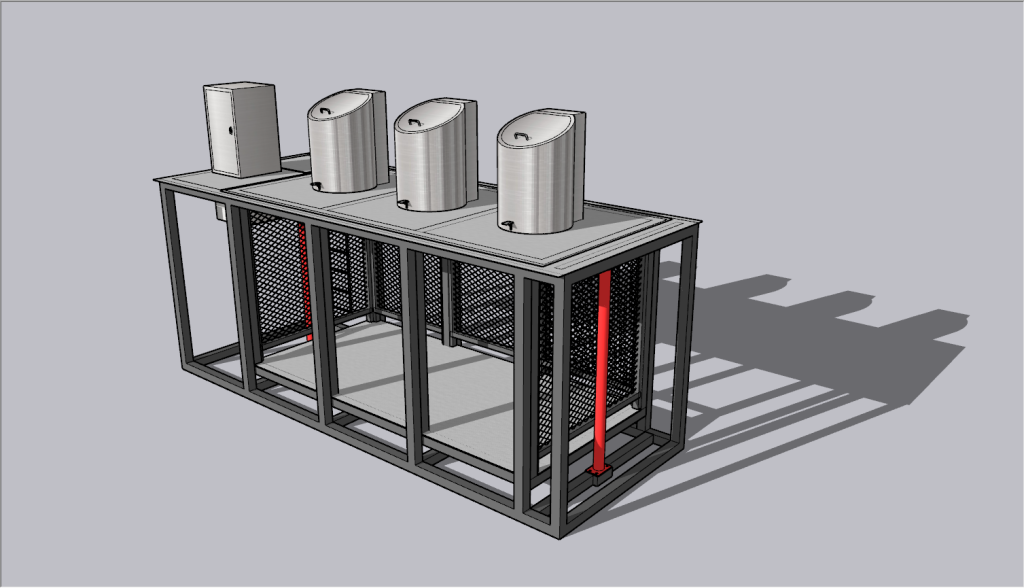

Structure & Materials: Above grade 2 mm stainless steel platform and inlet assembly; below grade 120 channel steel frame and lift platform with anti corrosion treatment
Drive & Control: Hydraulic lift; supports 24/48V DC or 220V AC per local electrical standards; button/sensor/card control available
Sealing & Drainage: Flanged platform with sealing gaskets; automatic drainage at the pit bottom
Collection Interface: Raise to grade and tow bins out; compatible with common collection vehicles
Features
- Subsurface, sealed architecture: Hidden chamber delivers a neat streetscape while sealing and drainage mitigate leaks and odors.
- Dual-inlet efficiency: Two entry points spread foot traffic, reduce wait times, and limit stray litter.
- Smart options ready: Add overflow detection, smoke/temperature alarms, auto fire suppression, and mist/biological deodorization with remote notifications.
- No special trucks: Standard 1100L bins and existing routes—lift, tow, return, and resume service.
- Built to last outdoors: 2 mm stainless steel up top paired with a 120-channel steel underframe for long-term durability.
- Safe upkeep: In-pit service access, travel, and mechanical limit protection, and modular parts for fast swaps.
Customize
- Structure & Materials: coated carbon steel or stainless steel (201/304/316)
- Colors & Signage: RAL or custom colors, sorting icons, multilingual labels
- Opening & Control: button/foot/sensor/card access with role management
- Functional Modules: weighing, overflow alerts, smoke/temperature alerts, automatic fire suppression, mist/biological deodorization, inlet locking, remote monitoring/GPS, data interface
- Documentation Package: pit/embed references, installation & maintenance manuals, acceptance documentation, and training
Why Choose Us?
- Policy aligned, turnkey delivery: One team covers design, civil interface, manufacturing, installation, training, and after-sales with complete documentation for acceptance.
- Lower total cost of ownership: Sealed collection reduces cleaning frequency and odor complaints; platform data supports route optimization and work order closure.
- Electrical safety and local compliance: DC safe voltage or 220 V AC as required; interfaces and wiring built to local electrical codes for smooth approval.
- Modular expansion without waste: Configure only the modules you need, such as sensor entry, overflow, fire, deodorization, remote monitoring, or GPS, to avoid redundant spending.
- Proven compatibility: Works with standard 1100L bins and common collection vehicles; minimal process change and fast go-live.
- Quality and delivery assurance: Batch production experience, traceable key components, and full packs of pit drawings, embed guides, installation and maintenance manuals, and spare parts lists.
