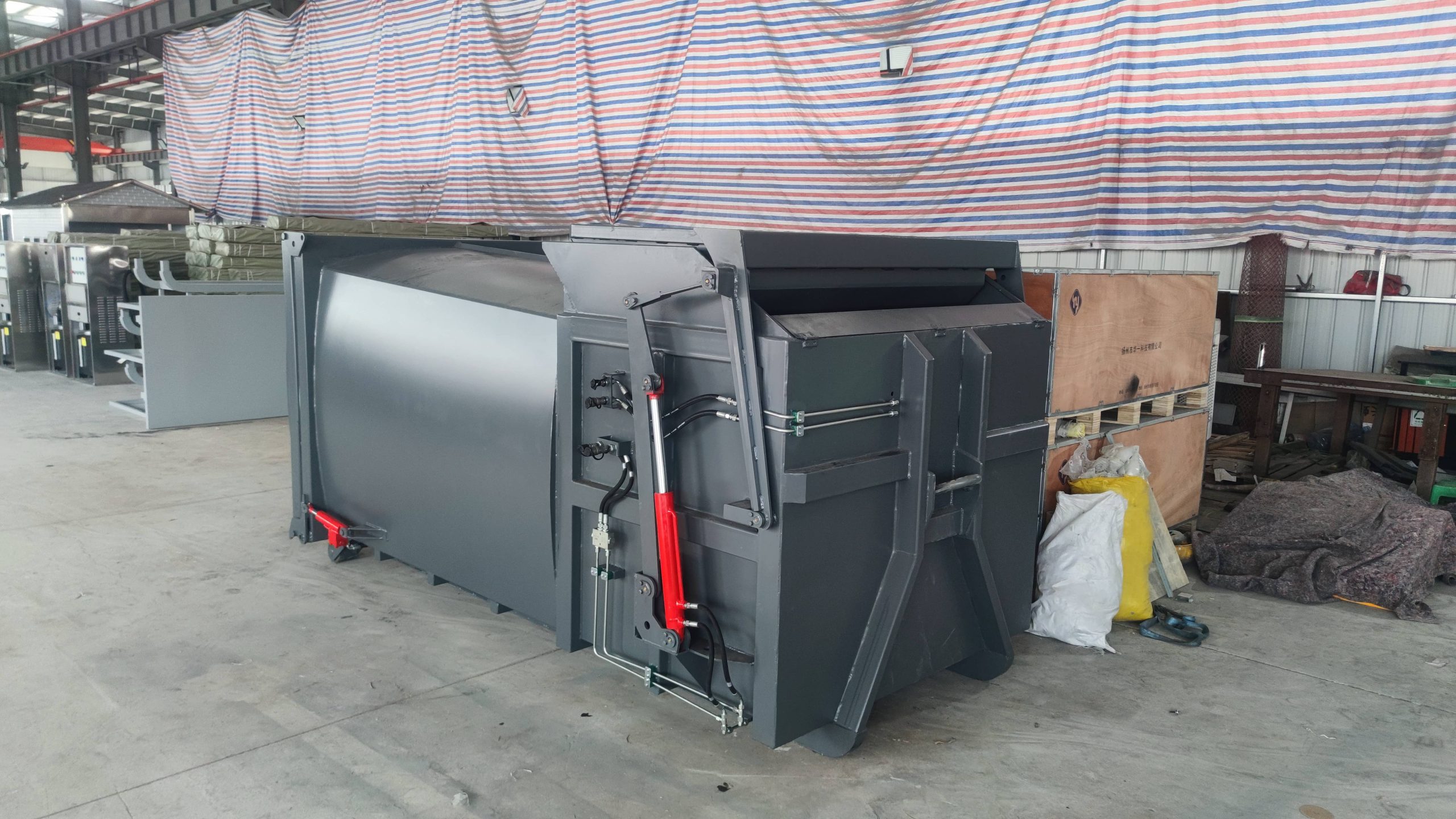

7m³ Mobile Compression Bin (With Hopper)

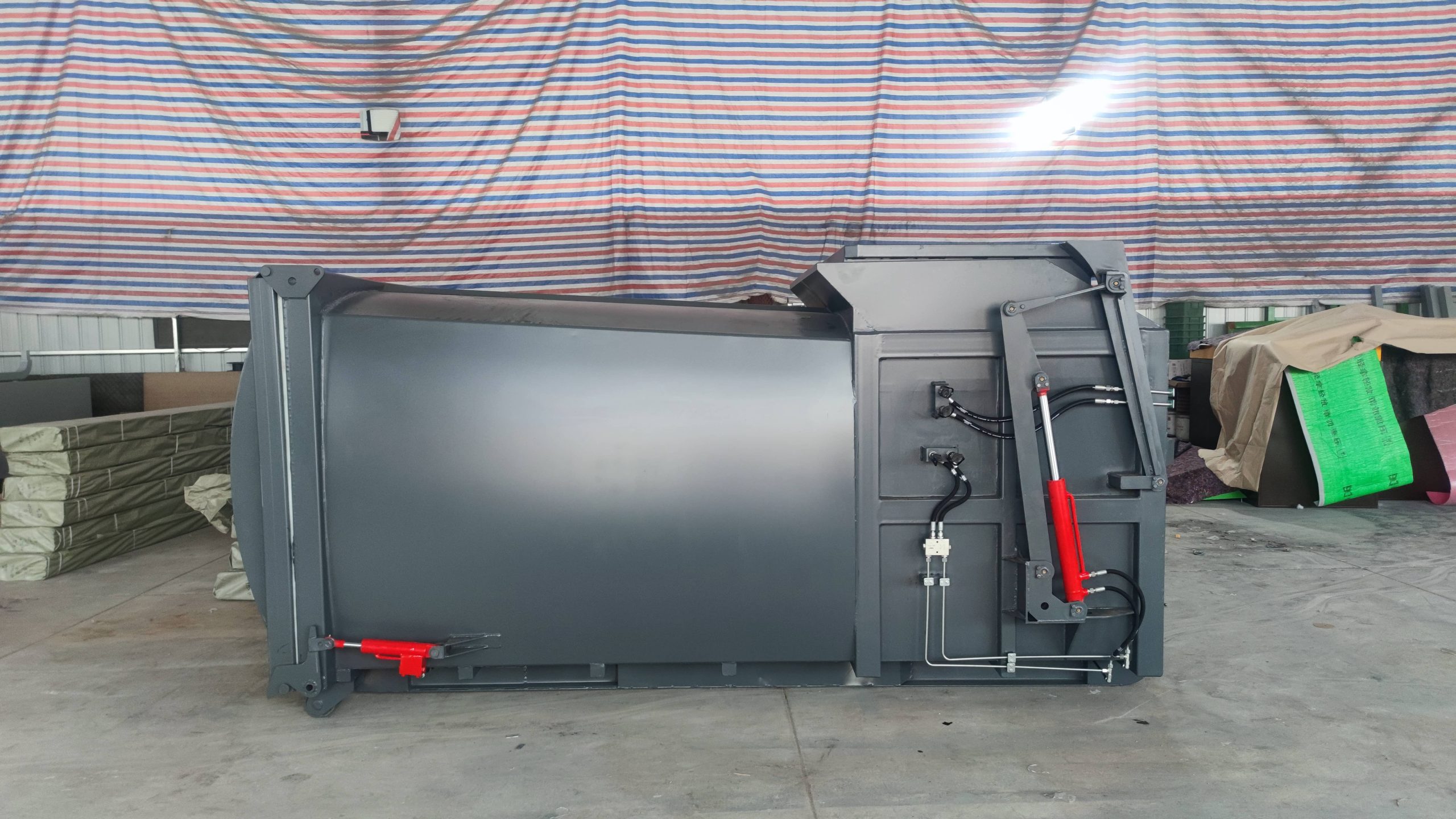

7m³ Mobile Compression Garbage Bin (With Hopper)

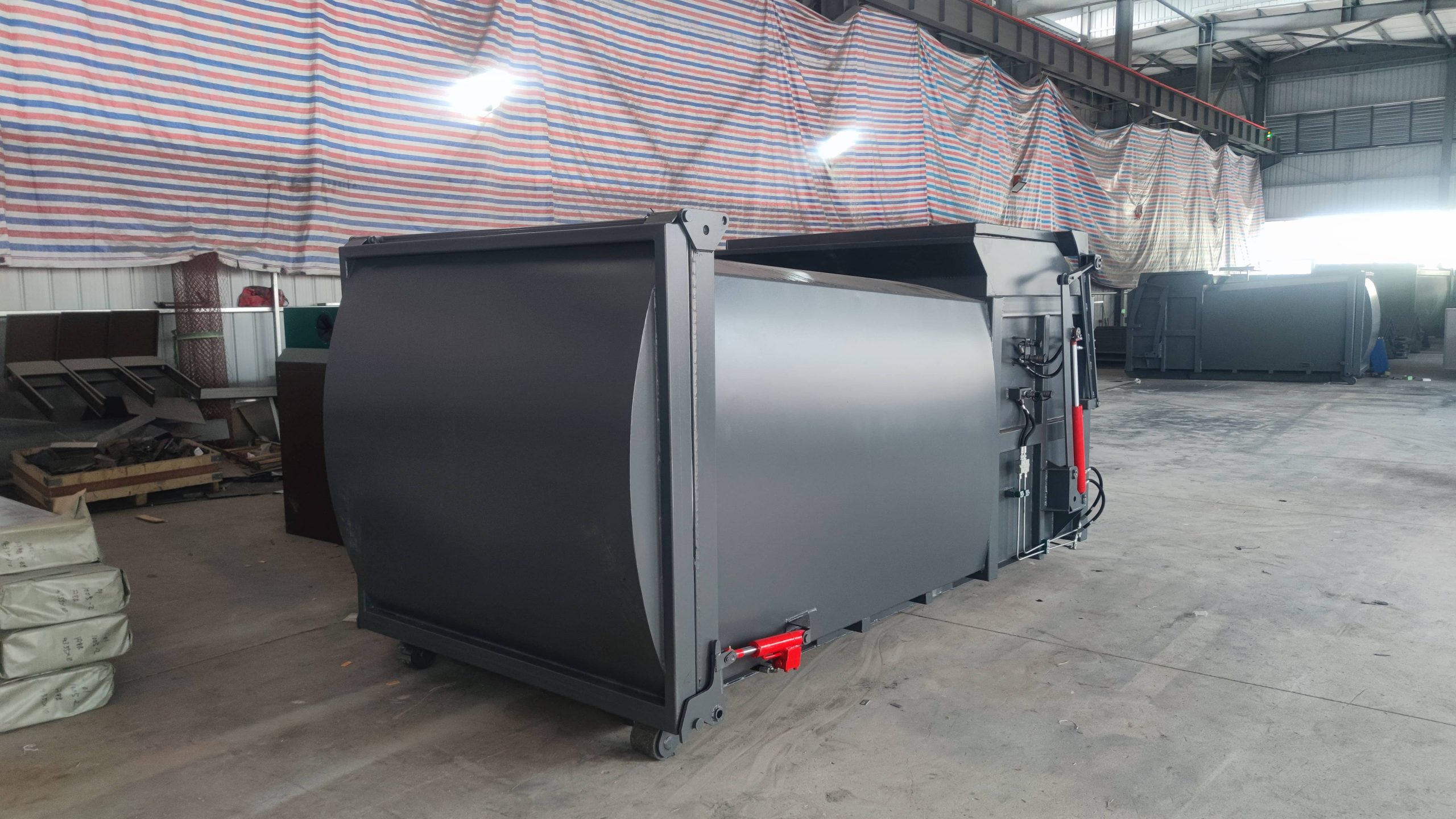

7m³ Mobile Copactor Garbage Bin (With Hopper)

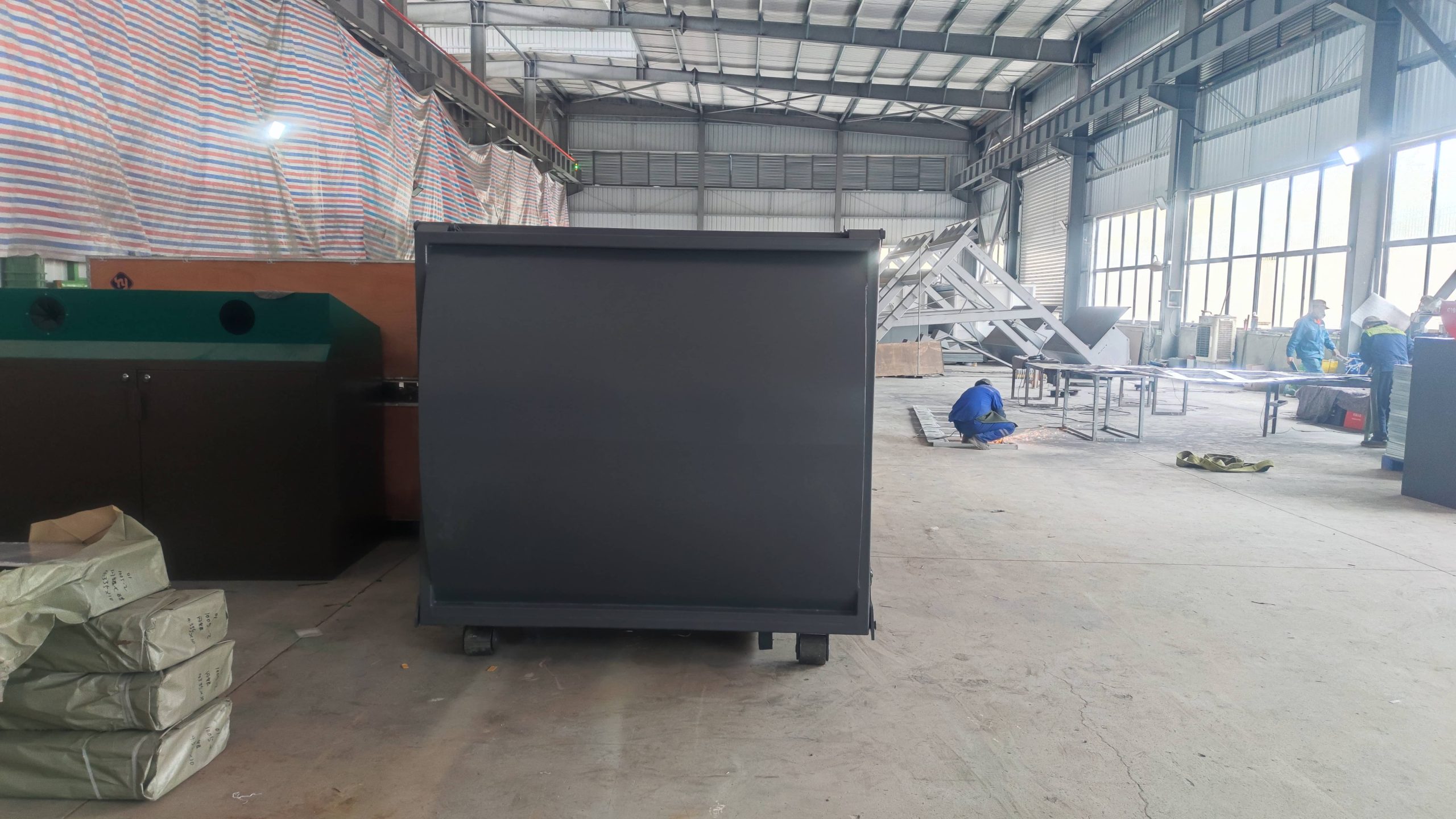

7m³ Mobile Compactor trash Bin (With Hopper)

7m³ Mobile Garbage Compactor With Hopper

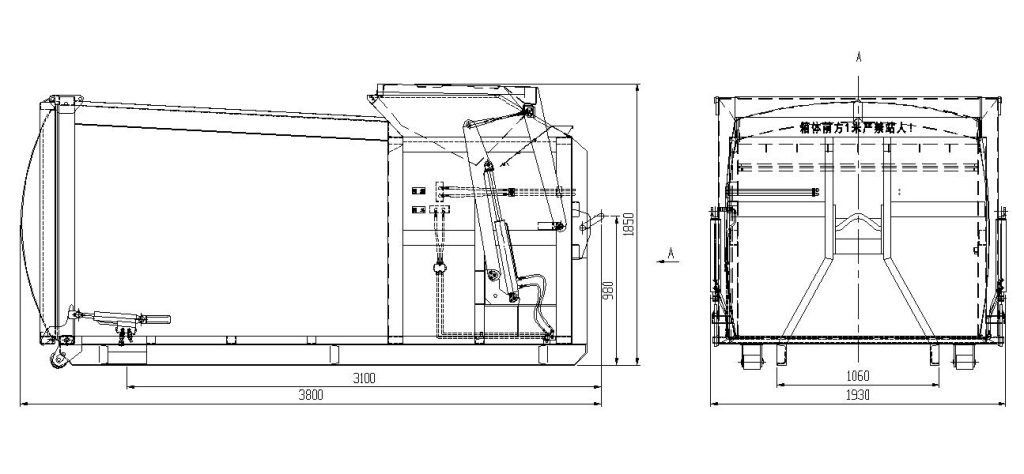

Overall Dimensions (L×W×H): 3800×2000×1800 mm
Maximum Compression Force: 14 (T)
Single Compression Cycle Time: ≤ 40 s
Power Supply Voltage: 380V
Maximum Load Capacity: ≥ 4 Tons

+86 133 6822 8194

Product Description

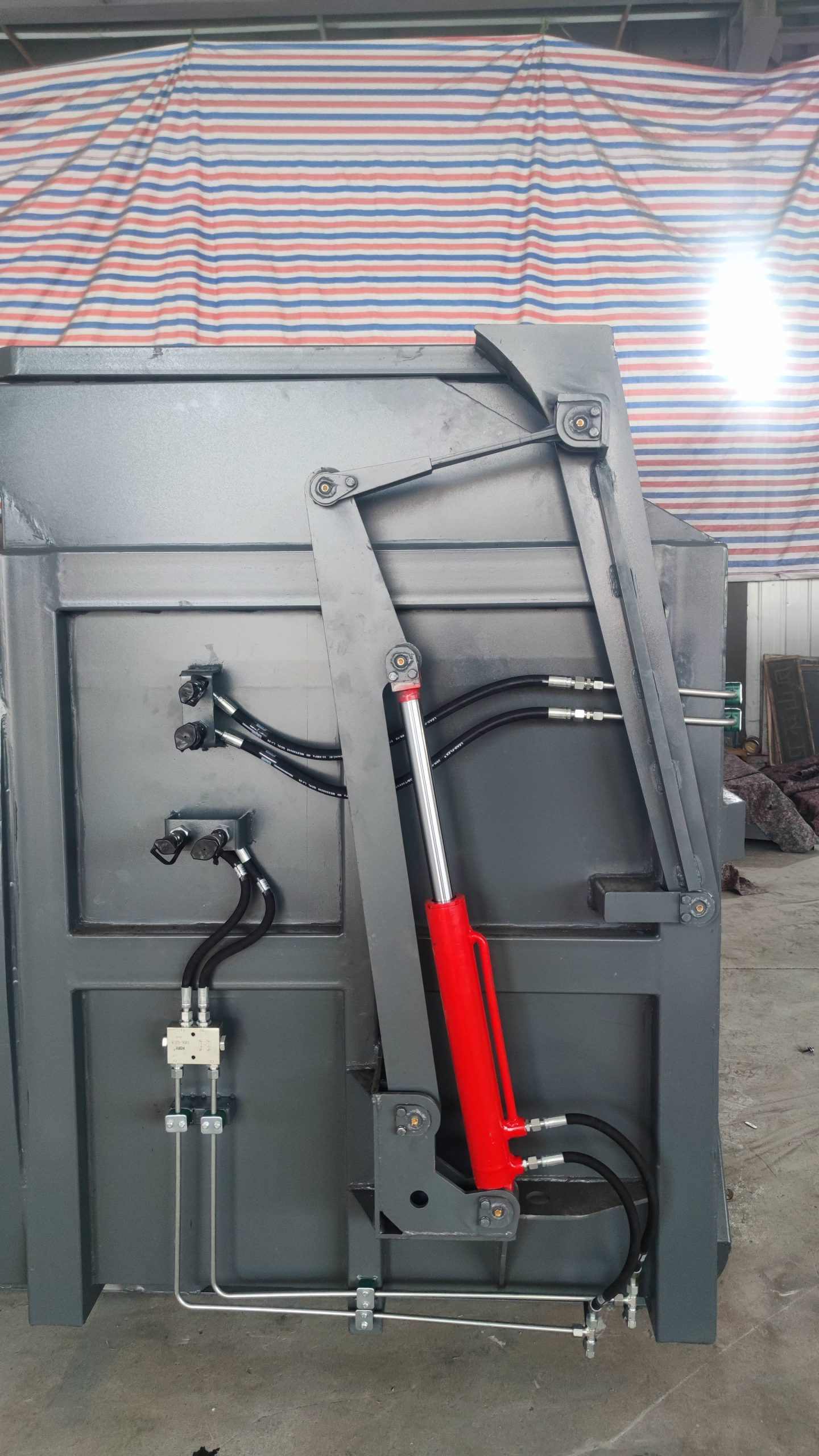

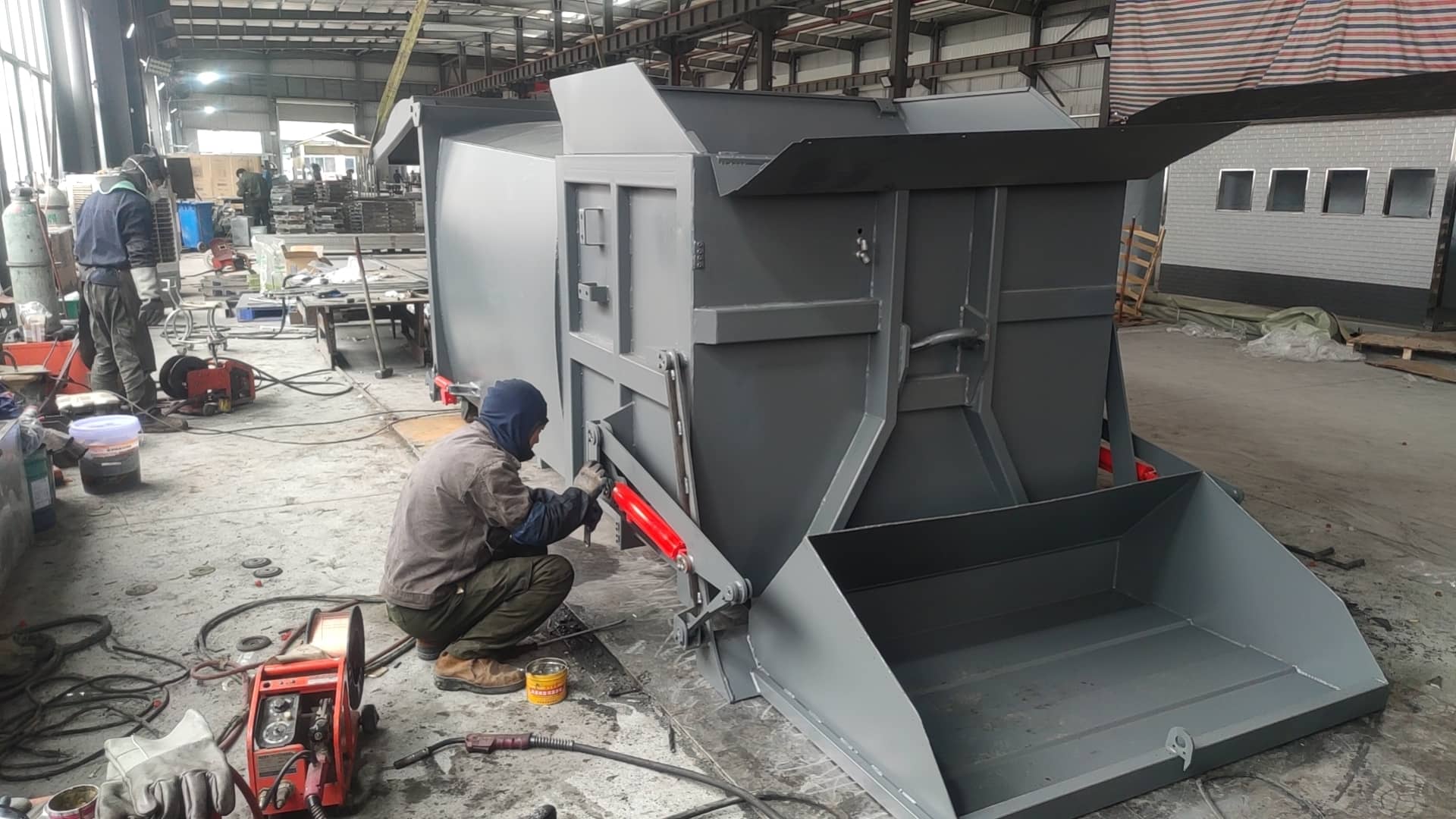

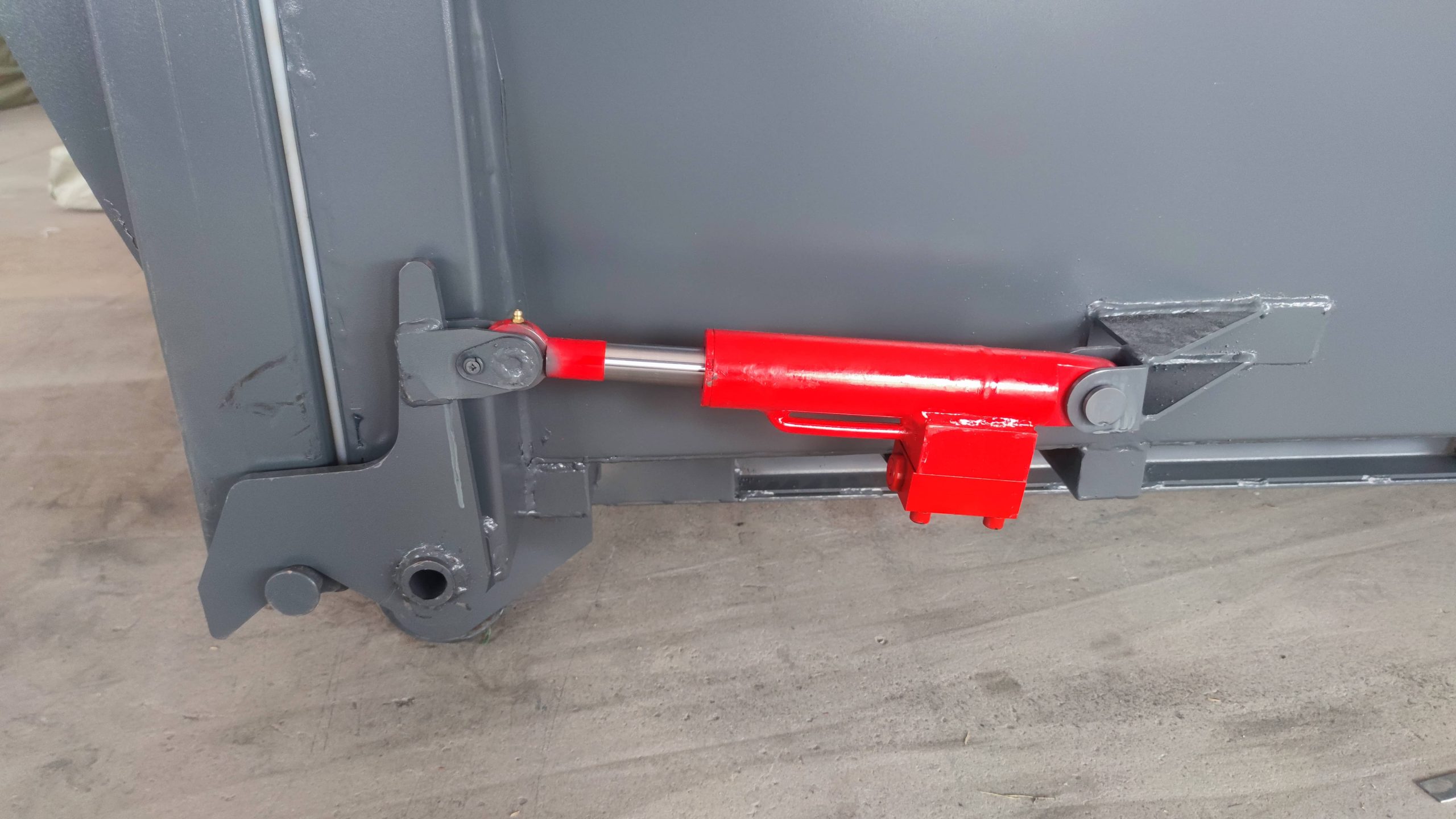

Model HD07YS-02 is a 7m³ mobile compression garbage bin retrofitted with a feeding hopper, powerful compression ram, slag baffle slide, and a hydraulic-locked rear door. Designed for high tank utilization and seamless integration with 5 to 8 ton hook-lift trucks, this compact unit realizes fully sealed transportation and automatic heavy-load dumping. Its low-profile design makes it an ideal solution for height-limited spaces like underground parking garages, as well as outdoor industrial and municipal environments.
Main Components: Feeding Hopper, Compression Mechanism, Feeding Cylinder, 7m³ Storage Tank, Hydraulic Locked Rear Door, and Independent Electric Control Box.

Learn more about our Mobile Waste Compactor Bin here.

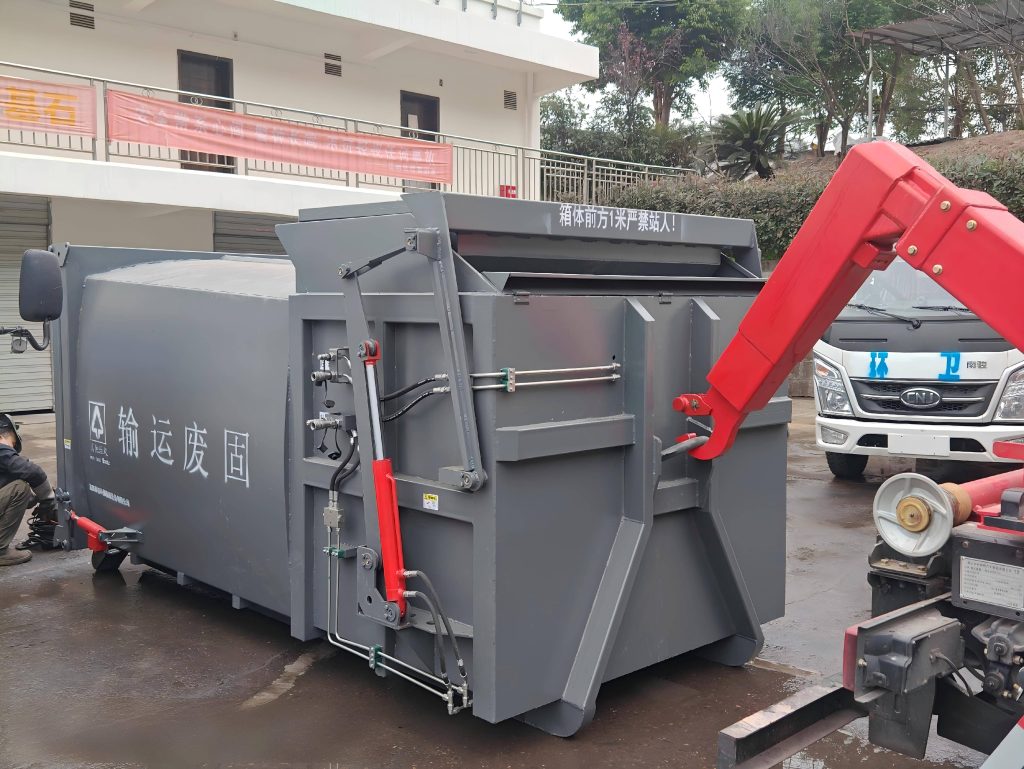

7m³ Mobile Compactor Bin (With Hopper) onsite

Main Technical Parameters

Item	Specification	Item	Specification
Model	HD07YS-02	Compartment Volume	1 m³
Overall Dimensions (L×W×H)	3800×2000×1800 mm	Maximum Compression Force	14 （T）
Effective Tank Volume	7 m³	System Working Pressure	15 MPa
Single Compression Cycle Time	≤ 40 s	Power Supply Voltage	380V
Compaction Density of Domestic Waste	580 kg/m³	Maximum Load Capacity	≥ 4 Tons
Motor Power	3.75 kW	Total Tank Weight	≥ 1200 kg
Hook Center Height	950–1570 mm	Longitudinal Beam Clearance	1060 mm
Compression Mode	High-position compression with cross cylinder ram	Ram Compression Stroke	800 mm
Compression Chamber Size	1540×500×800 mm	Thrust of Ram Cylinder	15 Tons
System Noise	≤ 60 dB	Operating Ambient Temperature	-15℃ ~ 60℃
Hopper Volume	0.5 m³	Connection of Electric Cabinet & Tank	Hydraulic Quick Coupling
Power Unit Layout	Integrated with independent electric control box	Quantity of Compression Ram Cylinders	2 pcs
Model of Ram Cylinder	HGS-80/45	Opening & Closing of Feed Cover	Replaced by feeding hopper
Hook-lift Operating Height	≤ 3.4 m	Overall Travel Height (with truck)	≤ 3 m

Core Features

Low Profile, High Capacity: Features an ultra-low overall height designed specifically for tight, height-limited underground garages, yet delivers a 14-ton compaction force that packs over 4 tons of waste per load. This massively cuts down on daily round-trips.

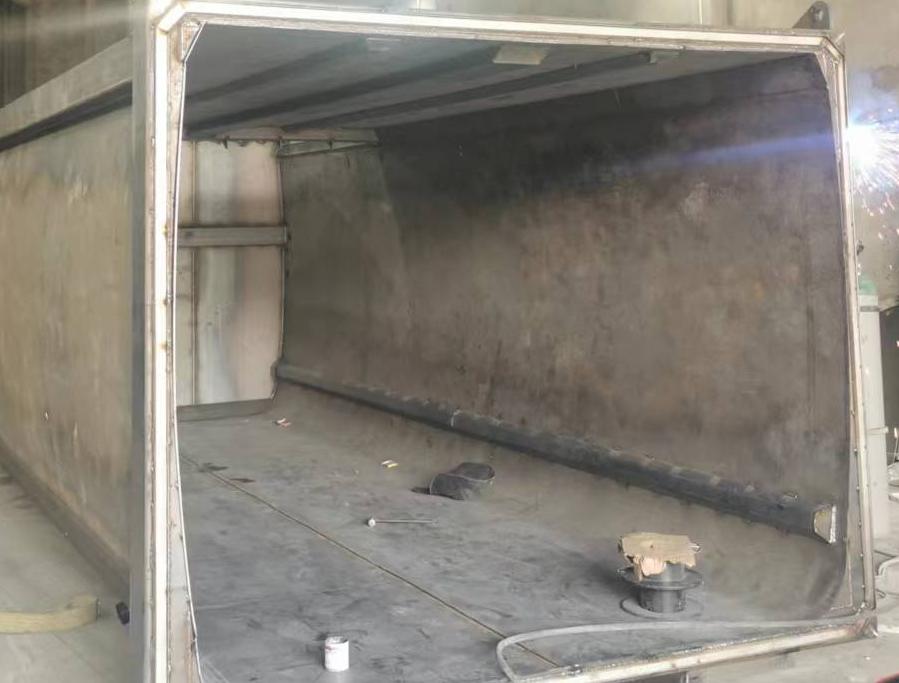

Heavy-Duty Q355 Build: Built to last with 6mm Q355 steel for the compression chamber/ram and 4mm for the tank body. The frameless curved design shrugs off high pressure and makes daily washdowns simple.
3-Year Rust-Free Guarantee: Treated with a rigorous 4-layer industrial coating (Sandblasting – – Zinc-rich Primer – – Polyurethane). It is highly resistant to acids and alkalis, ensuring no visible rust for at least 3 years of all-weather outdoor operation.

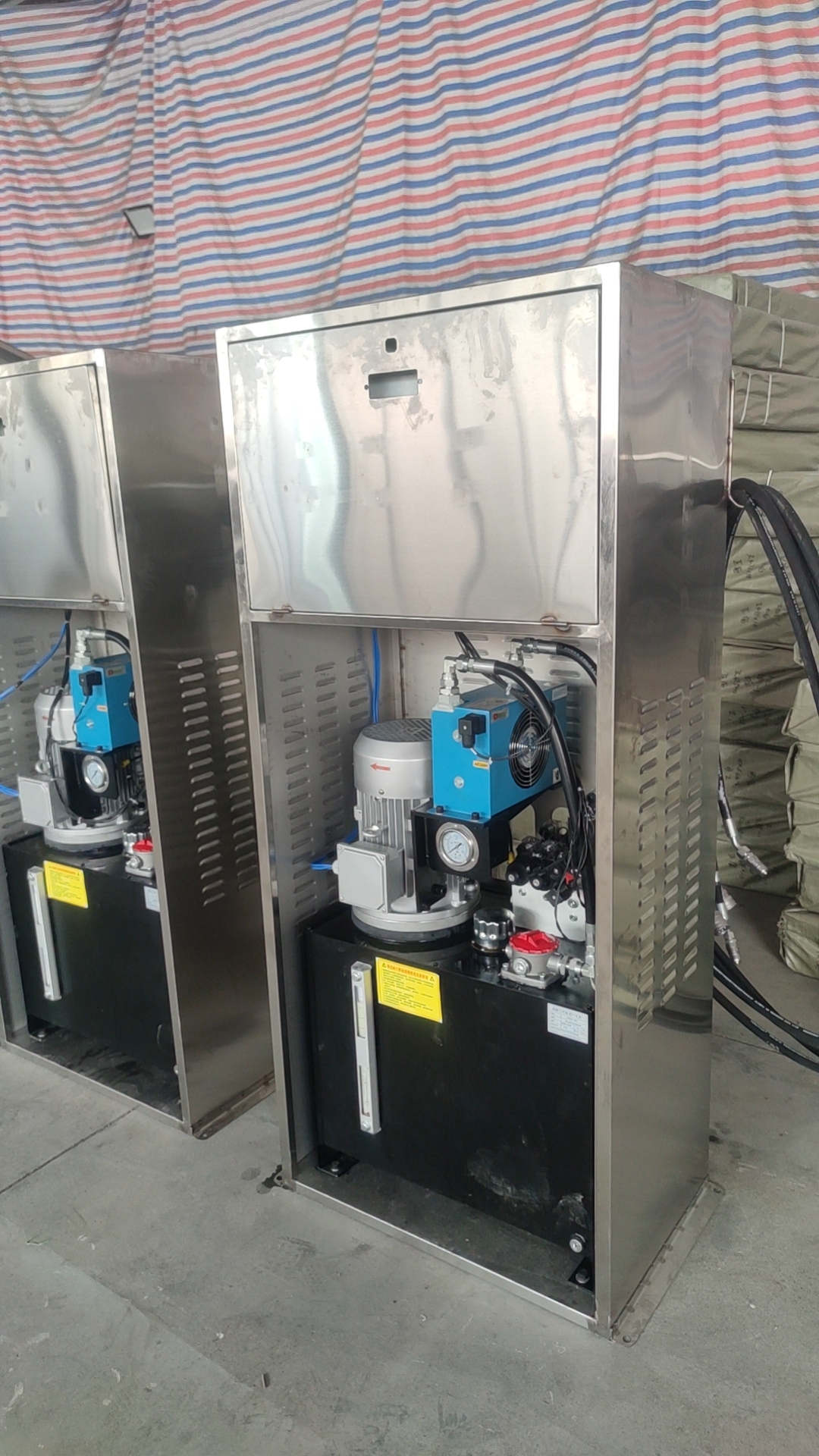

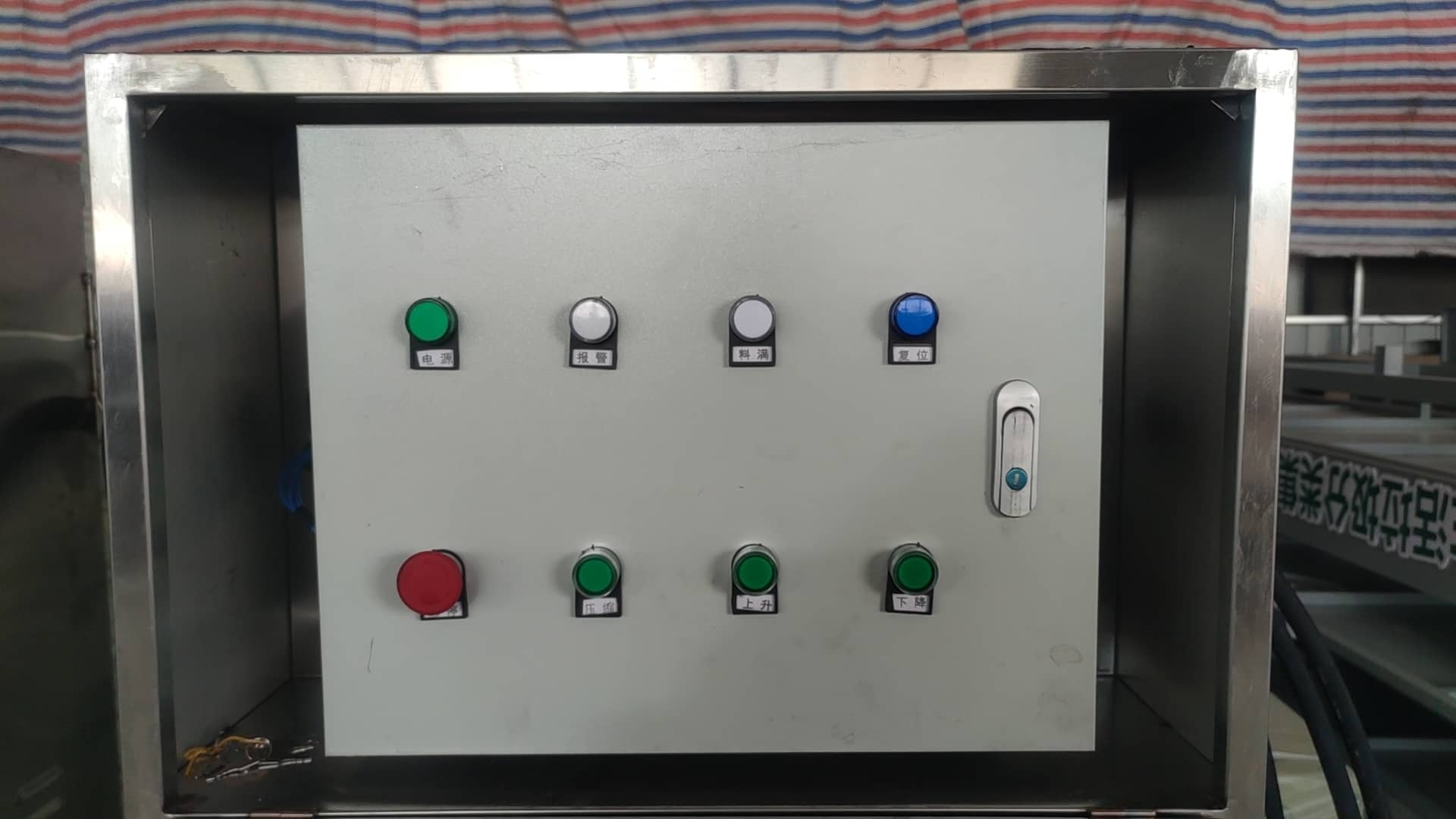

Smart, Safe Automation: Driven by a user-friendly, one-touch PLC system with auto-cycle compression. The setup includes an IP55 weatherproof electrical cabinet, an integrated cooling system, and full safety alerts (overload, low-oil, and full-load alarms).
Odour & Leak-Proof Sealing: The rear door uses heavy-duty, container-grade double-lip EPDM rubber seals (guaranteed for $\ge$ 1 year), completely locking in liquid and foul odours during transport.
