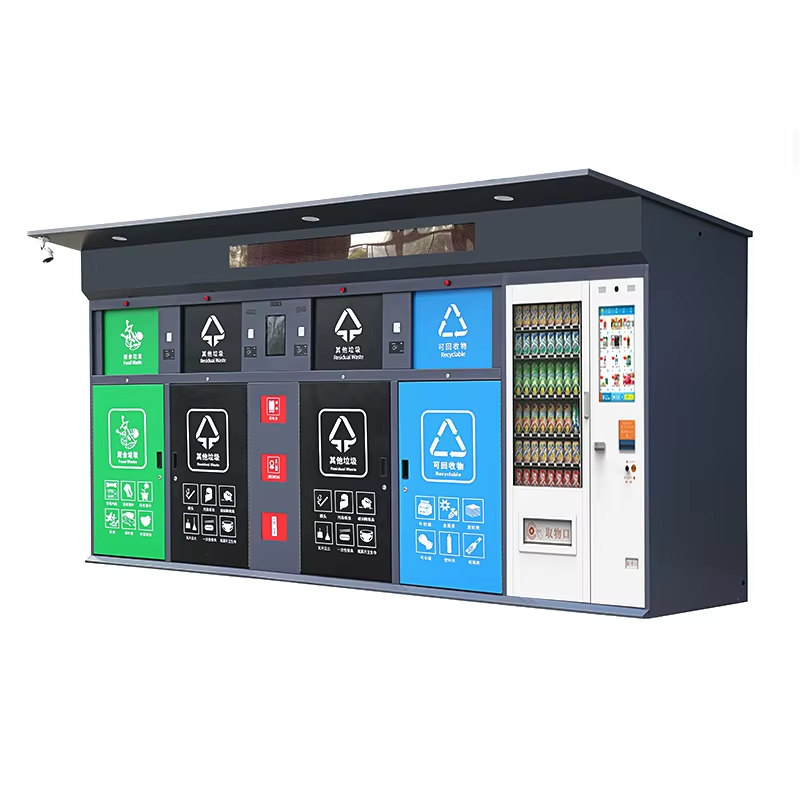

4 × 120L + 1 × 30L Smart Trash Bins
Surface Finish: Outdoor polyester powder electrostatic spray
Weatherproofing: Gasketed seals; internal drainage channels
Labels: UV-resistant, wear-resistant, sandwich-printed sorting icons
Display: Single-color, high-brightness outdoor LED screen
Facial Recognition (Optional): Industrial-grade camera for user ID verification
QR Code Scanner (Optional): USB/TTL; 5600K LED; resolution ≥ 5 mil
Product Description
Optimized for outdoor and semi-outdoor public spaces, this station delivers 4 × 120L + 1 × 30L capacity to separate daily waste streams while keeping the footprint compact. It supports ID verification (facial recognition or QR scan), one-touch motorized inlets with anti-pinch protection, weight-to-points incentives, full-load lockout, and a >70 °C temperature alert. For clear guidance and efficient upkeep, it includes night lighting, an outdoor LED display, GPS positioning, sealed waterproof construction with drainage, and optional wireless monitoring with centralized management. Appearance, inlet usage, and internal bucket design can be tailored to site rules and local language.
Specifications
Item No.: HDZ-6
Size: 3000*1200*2350mm
Capacity: 120L*4+30L*1 (customizable)
Body Material: High-quality electro-galvanized steel (body thickness ≥ 1.2 mm)
Reinforcement: Galvanized ribs and sloped panels (thickness ≥ 2.0 mm)
Touch Screen (Optional): 15 in, 1024×768, 500 cd/m², wide-temperature
Monitoring (Optional): Infrared night vision up to 25 m; built-in Wi-Fi; IP66; UPnP auto port mapping; centralized management software
Safety & Sensing: Full-load warning with auto-lock; weight reporting; >70 °C temperature alert; anti-pinch door; night lighting; GPS positioning; anti-theft protection
Features
1. Quick User Identification
Facial recognition or QR codes facilitate quick, trackable disposal with minimal activity records.
2. Safe, Automatic Inlets
With one press, the inlet opens or closes. In case of a full unit or unauthorized access, the inlet locks automatically.
3. Customizable Modular Design
Configure not only the appearance, but also the labels, inlet locations, and bucket layout according to your sorting needs. It supports many languages, and it is only necessary to have the modules you select.
4. Weighing with Rewards
Every disposal gets weighed and is synced. Users are able to view their points and history, while operators receive easy-to-read summaries.
5. Ready for Outdoor Use
Outdoor use is the main reason for building the unit with powder-coated galvanized steel, sealed gaskets, and drainage. Outdoor LEDs will always be on to ensure clear guidance.
FAQ
Customize
- Integrated Manufacturing: We merge disciplines. By having one team of designers for structure, electronics, and software, we get rid of delays and make sure that the quality is always the same.
- Adaptable Design: We are all about adaptability and change. Our modular platform makes it possible to configure very accurately, which means you won’t have to deal with the financial burden of excessive capital investments and complex management of spare parts.
- Total Transparency: We are giving you the means for insight. Get real-time monitoring of your operations, be proactive in responding to alerts that could lead to issues, and create reports with just a click to make informed decisions.
- Data Intelligence: We will make every transaction valuable to you. Automatically use the disposal data to run points programs, easily prove compliance, and keep improving route efficiency all the time.
Want to learn more? Feel free to contact us!
